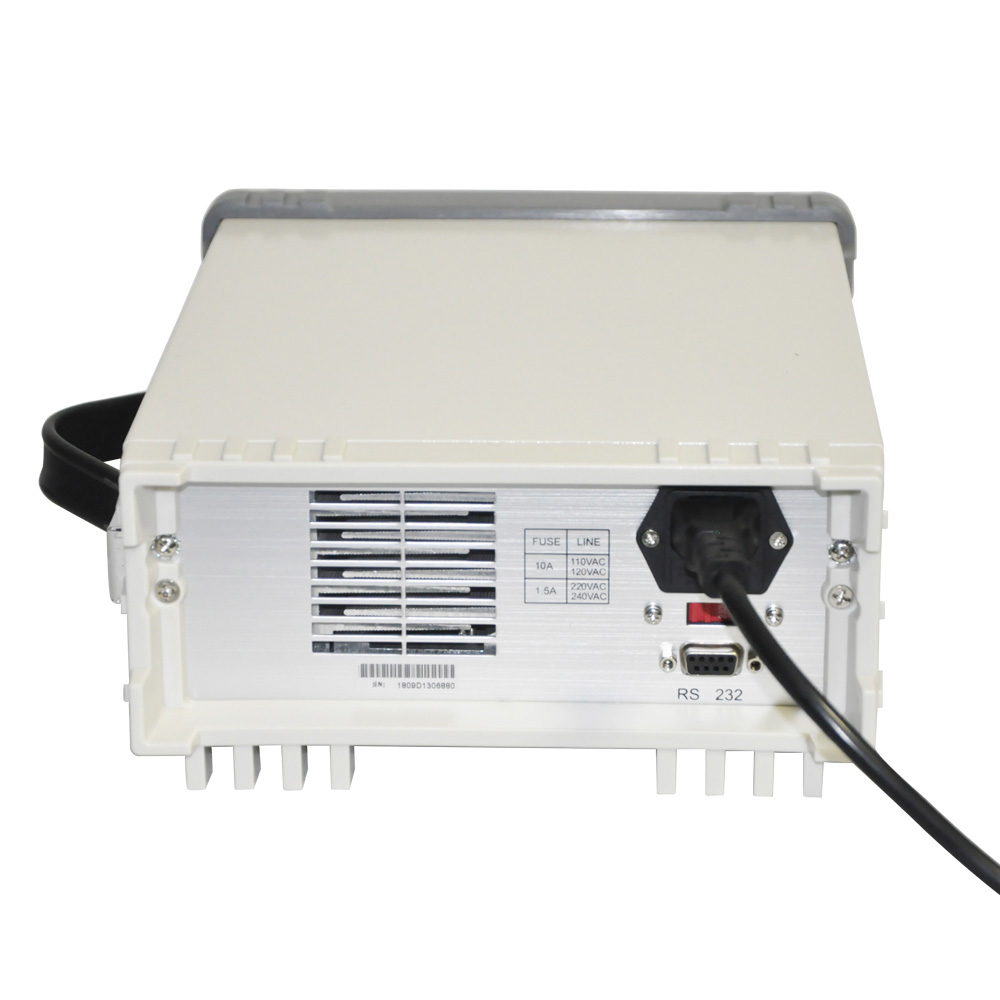

High Accuracy Adjustable Current DC Power Supply Programmable 36V 3A 5A 10A Support RS232

Load regulation rate : 0.02%+3mV, 0.02%+3mA

Ripple Wave : 1mVrms, 3mArms

keywords : DC Power Supply

MOQ : 1

Price : €189.59

Brand Name : NAPUI

Output Current : 10A

Packaging Details : Cartons and wooden boxes

Delivery Time : 1-3 days

Output Type : Single

Set value resolution : 10mV, 1mA

Dimesion : 214*108*305

Output Voltage : 36V

Set value accuracy : ≤0.02%+2digit

Color : Blue

Envrionment Temp. : 0 to 40℃ ≤

Certification : CE

Power regulation rate : 0.02%+3mV, 0.02%+3mA

Read back value accuracy : ≤0.02%+2digit

Model Number : PD9605

Place of Origin : CHINA

Input Voltage : AC220V/110V±5%, 220V

Payment Terms : T/T 100% in Advance

Output Frequency : 50/60Hz

Contact Now

36V/10A 36V/5A 36V/3A Digital Programmable Adjustable DC Power Supply

PD9600 series is the high-quality programmable DC power supply of new generation, and this series of products can be equipped with communication interface. PD9600 series power supply has the characteristics of both desktop type and system type, and can be freely matched with other instruments to integrate into the test system with special functions so as to meet measurement demands on different occasions, and the program can be edited through panel keyboard to bring great convenience to users. It is an alternative product of the ordinary programmable power supply, and has advantage of high cost performance.

This series of power supply boasts of the following characteristics:

• Non-polar servo, intelligent fan system

• Multi-group data storage

• Standard instrument rack design

• Support RS232, communication

Type		PD9603/PD9605	PD9610
Rated output voltage		0-36V	0-36V
Rated output Current		0-3A, 0-5A	0-10A
Transformer mode		linear power supply	linear power supply
Load regulation rate	voltage	0.02%+3mV	0.02%+3mV
	current	0.02%+3mA	0.02%+3mA
Power regulation rate	voltage	0.02%+3mV	0.02%+3mV
	current	0.02%+3mA	0.02%+3mA
Set value resolution	voltage	10mV	10mV
	current	1mA	1mA
Set value accuracy	voltage	≤0.02%+2digit	≤0.02%+2digit
	current	≤0.02%+2digit	≤0.02%+2digit
Read back value resolution	voltage	10mV	10mV
	current	1mA	1mA
Read back value accuracy	voltage	≤0.02%+2digit	≤0.02%+2digit
	current	≤0.02%+2digit	≤0.02%+2digit
Ripple Wave	voltage	1mVrms	3mVrms
	current	3mArms	5mArms
Temperature	Envrionment Temp.	0 to 40℃ ≤
	Storage Temp.	Negative 15~70℃
Dimesion		214108305mm	214108365mm
